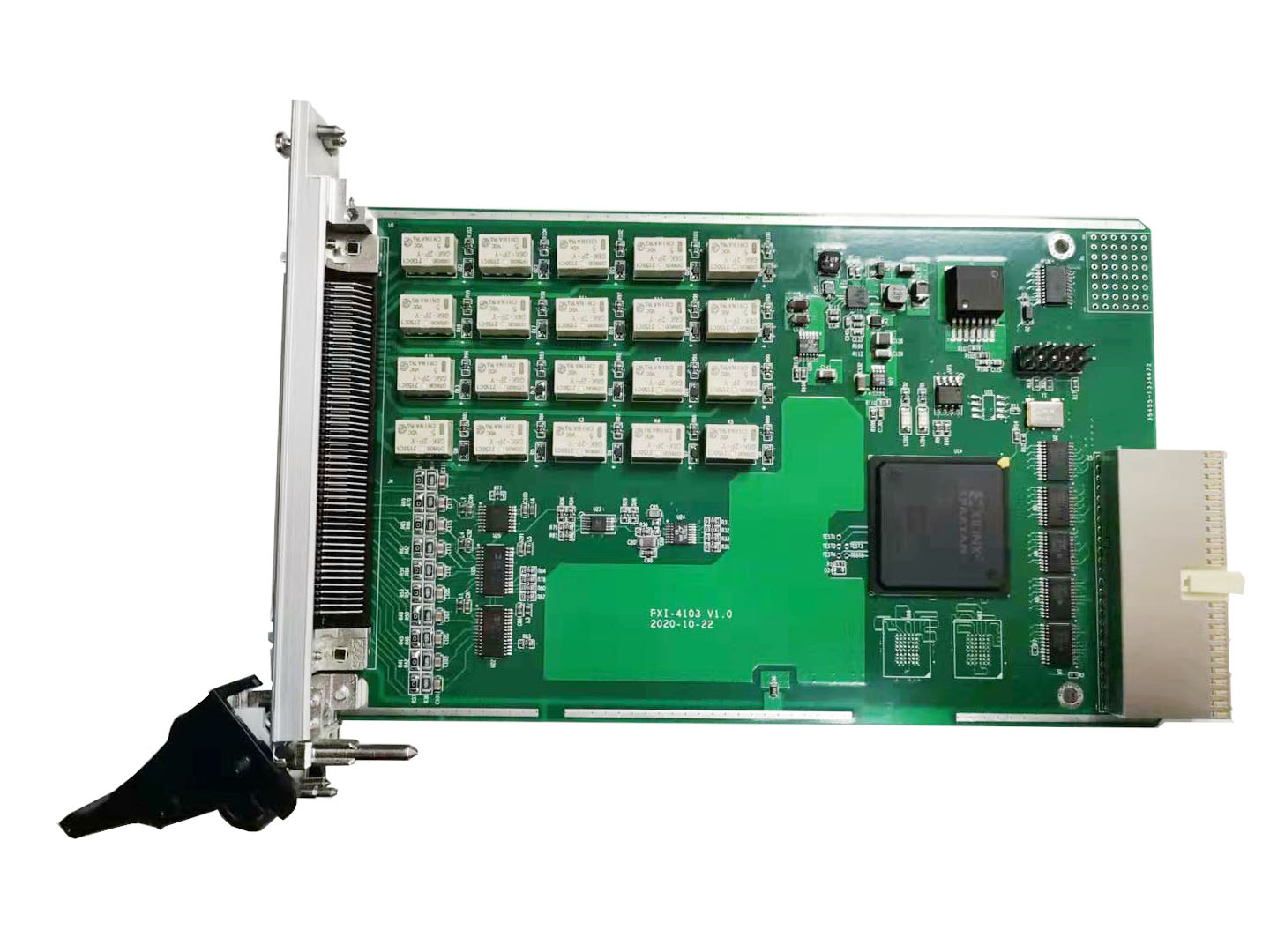

Vanciet's PXI/CPCI-4103 is a series of 20 channel current acquisition cards. It uses sampling resistance to convert current signal into voltage signal, and then collects it through multi-channel ad. Its ADC resolution is 16bit and the acquisition accuracy is high. Each channel can also be configured as a voltage channel, which can adapt to a wider range after voltage division through voltage division resistance.

Technical specifications:

♦ Channel: 20 channels

♦ Current input range: - 50 ~ 50mA

♦ Filtering frequency: 3kHz

♦ Sampling resistance: 200 Ω

♦ Acquisition degree: 0.2% FS

♦ Resolution: 16bits

♦ Acquisition accuracy: ± 0.1mA, ± 0.05v

♦ IO connector: scsi-100 female

♦ Operating temperature: 0 ~ + 50 ℃

♦ Storage temperature: - 20 ~ + 70 ℃

♦ Working humidity: 10% ~ 90% non condensing

♦ Storage humidity: 5% ~ 95% non condensing
