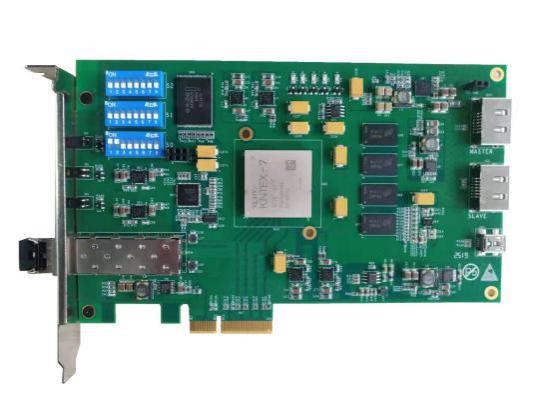

Fiber optic reflective memory card vc-rfm-5160 series

Vanciet's vc-rfm-5160 series of optical fiber reflective memory cards support 10G optical fiber network.

Vc-rfm-5160 series products are widely used in simulation, industrial control, aerospace, rail transit, automatic testing, data acquisition system, radar system and other fields.

Optical fiber interface index

Optical Fiber rate: 10.3122gbps

Transmission bandwidth: 1200MBPS

Number of supported nodes: 4096 at most

Onboard memory: 512MB

Maximum transmission distance: single mode 40km, multi-mode 800m

Message type: 4

Number of message caches: 511

Dual redundancy mode

flow control

Host interface index

PCIe interface support PCIEX4@10.3122GBPS

Cpcie interface support PCIEX4@10.3122GBPS

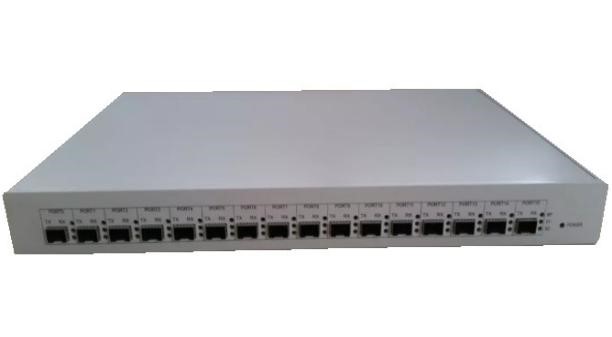

Compatible optical fiber reflective memory switch

Vanciet’s optical fiber reflective memory switch can cascade multiple optical fiber reflective card nodes, which has the advantages of simple wiring, fault isolation, flexible network setting and so on. All use dual core optical fiber to connect the single node with the hub, and the wiring is simple; When a node fails, the node can be isolated without affecting the whole network communication; The network node can be divided into two sub networks or a single overall network through the dial switch.

Fiber rate: 10.3122gbps

Transmission bandwidth: 1200mbps

Maximum transmission distance: single mode 40km, multi-mode 800m

Single node transmission delay 0.5us

Number of optical ports of hub: 8 / 16

Size: 8 channels: 435 x 290x44 5MM

16 channels: 435 x 290x44 5MM

Power supply: 8 channels: 220VAC@0.1A

16 channels: 220VAC@0.15A

Operating temperature: - 20 ° ~ + 70 ° C

Storage temperature: - 40 ° ~ + 85 ° C

Working humidity: 5% ~ 95%, non condensing
