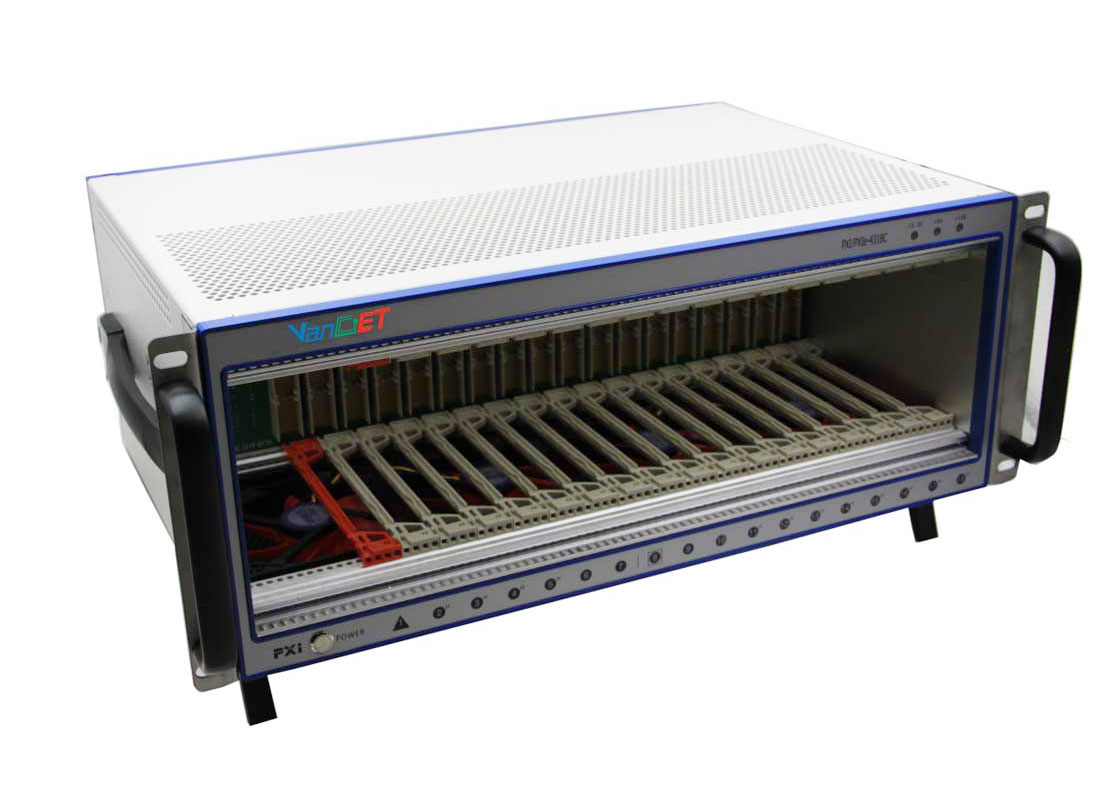

Vanciet's PXI-4318c is a 3U PXI chassis, which has a series of technology below features:

a. The more direct cooling mechanical system reduces the long air duct of the rear layout fan, making the heat dissipation efficient and uniform;

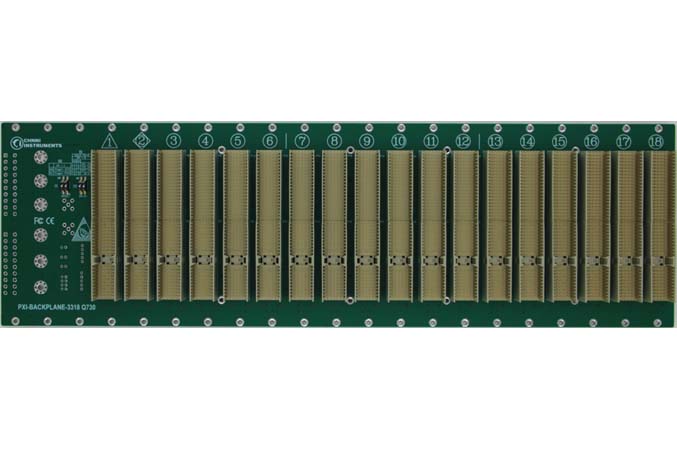

b. The backplane adopts wide temperature design to make it have ultra-high stability;

c. Intelligent chassis management. The chassis system can dynamically monitor and control fan speed, system voltage and internal temperature;

d. Support multi chassis clock cascade operation. With high performance, high reliability and high cost performance, this series of products can be widely used in military, transportation, testing & measurement, traffic control and other projects.

Pxi-4318c is compatible with PXI and CompactPCI specifications. It provides one 16hp wide system slot and 17 4HP wide peripheral slots to meet a variety of test and measurement requirements. Its design is light and firm, flexible and lightweight. The chassis design has better portability, supports wide temperature operation, lower operation noise and superior heat dissipation performance to meet your application needs.

Pxi-4318c has an industrial grade 800W AC power supply, which provides sufficient and reliable power for the whole system. The rear of pxi-4318c is designed with external 10MHz reference clock input and output interface, fan working mode selection, remote power control and other interfaces. The front panel is designed with working state led indicator and anti false trigger switch. The box is designed with PXI / CompactPCI slot with guide rail, which is convenient for users to insert and install function cards. Creative and solid double side panel main frame design and integrated front and rear panel design. The chassis can be placed horizontally, laterally and vertically.

In the process of design and debugging, the chassis products widely refer to and test the compatibility of mainstream controllers, and fully support and compatible with CompactPCI and PXI mainstream controllers.

Technical specifications

♦  PXI-4318c high performance 3U PXI / CompactPCI 18 slot chassis.

♦  Board products compatible with PXI and CompactPCI (PICMG 2.0 r 3.0);

♦  4U chassis height, 3U height board can be inserted, and 18 slot design;

♦  The controller slot occupies 16hp, which is equivalent to the width of four standard function cards;

♦  Universal AC input AC220V, with filter and fuse in the case;

♦  Industrial grade 800W AC power supply;

♦  Support remote chassis power control;

♦  The front panel is equipped with chassis power switch to facilitate desktop operation of equipment;

♦  The chassis has a temperature measurement function, which can automatically adjust the fan speed through the chassis ♦  temperature;

♦  The front panel is equipped with power status indicator;

♦  10MHz chassis reference clock input and output, BNC interface;

♦  The trigger path of PXI module can be adjusted through the trigger pin of backplane;

♦  With case handle, it can be placed in three directions: horizontal, lateral and vertical;

♦  When placed horizontally, the inclined foot pad of the chassis can be used;

♦  Through the chassis accessories, it can be installed on the rack;

♦  Case size: length 446mm * height 177mm * depth 314mm
